High Efficiency | Excellent Diffuse Light Performance
ReducedPower Loss
Environmentally Friendly | Clean Energy | Solar Panel 200W
High Quality and Cheap Price
Lightweight and Compact | Easy to Carry
waterproof silicon solar panel
Zhuhai Jingding Technology Co.,LTD
High Efficiency | Excellent Diffuse Light Performance
ReducedPower Loss
Environmentally Friendly | Clean Energy | Solar Panel 200W
High Quality and Cheap Price
Lightweight and Compact | Easy to Carry
waterproof silicon solar panel
Product model:
Solar panel 200w, portable solar panel
1 year Free Warranty
Lifetime Customer Support
Related Products
Product parameters

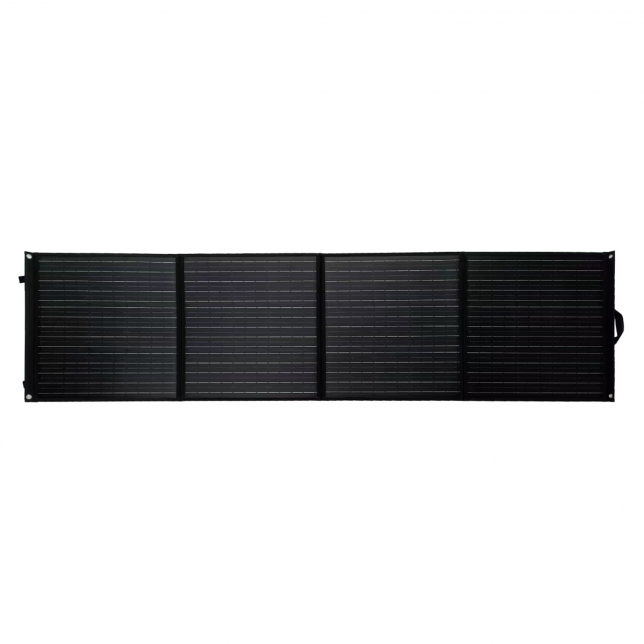

Product Name | Foldable Solar Panel |
Certificate | ISO，CE，ROHS |
Product model | 51W panel *4 folding |
Product process | PET surface monocrystalline silicon solar panel + polyester waterproof cloth sewing |
Material | Black 600D High weather resistance environmental protection fabric |
Product size（Folded) | 540*510*70 ±3MM |
Product size（UNFolded) | 2110*540*35 ±3MM |
Product weight | 5.9KG |
Output Ports | QC3.0 5v/3A 9V/2A 12V/1.5A (Max) |
USB 5V/3.0A Max | |
Type-C 5v/3A 9V/3A 12V/3A 20V/2.25A(Max) | |
DC 19V 10.50A (Max) MC4/Anderson/ DC7909/XT60 | |
Peak power | 200.00 Pm(W) |
Power tolerance | ±5(%) |
Peak power voltage | 19.00Vm(V) |
Peak power current | 10.5Im(A) |
open circuit voltage | 22.42Voc(V) |
Short circuit current | 11.37Isc(A) |
Soar cell efficiency | 22.50(%) |
Power temperature coefficient | -0.43(%/℃) |
Voltage temperature coefficient | -0.33(%/℃) |
Current temperature coefficient | 0.05(%/℃) |
Operating temperature/humidity | -20～+70 (Relative humidity 10～80%)(℃) |
International standard | STC.: AM 1.5,sunlight intensity 1000w/㎡,25℃ |

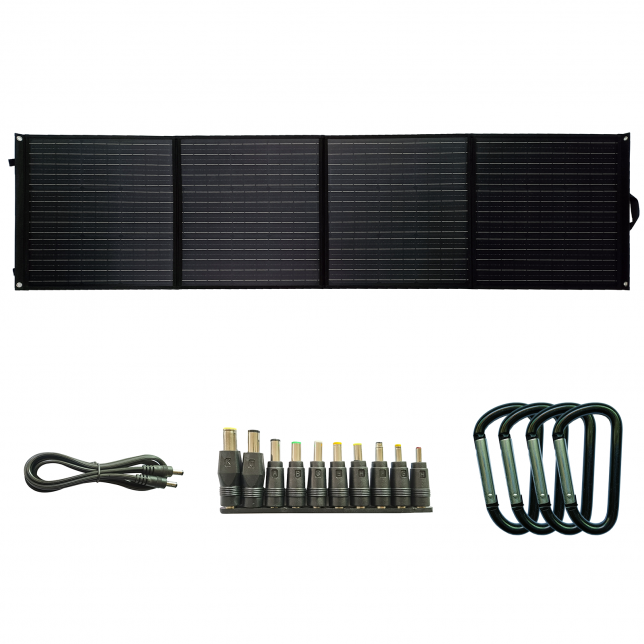

Packing Accessories | 4pcs Carabiner |
DC cable 1.5m long MC4/Anderson/ DC7909/XT60 | |
Charging connector 10pcs (5521 to:35135/4017/4817/5532/5517/5525/6330/6543/7450/7955) | |
User’s Manual |
