Zhuhai Jingding Technology Co.,LTD
Battery capacity 5000wh |Lifecycles 3000 times+
5000W AC Pure Sine Wave Inverter (Peak power 10000VA)

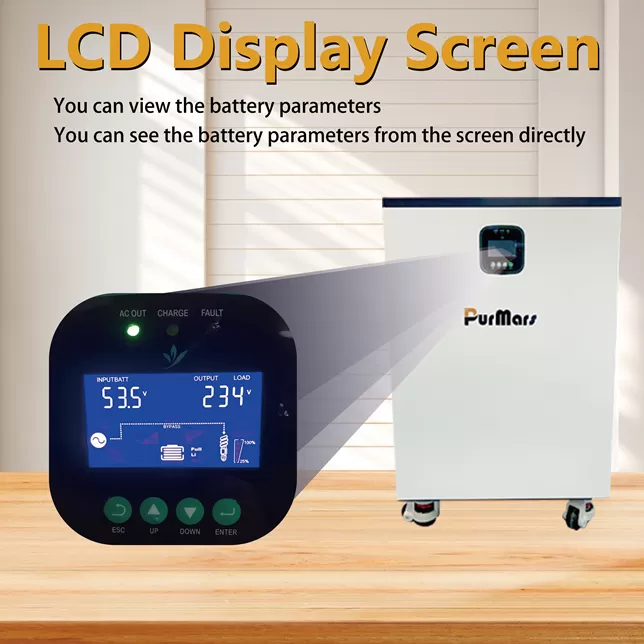

3 Recharge Method |500W Max. solar input | LCD Screen Design and 3 LED Indicator Lights l AC Charging
7 Outputs for Charging Multiple Devices at once | Off-Grid
Easy to Carry | Fast Charging

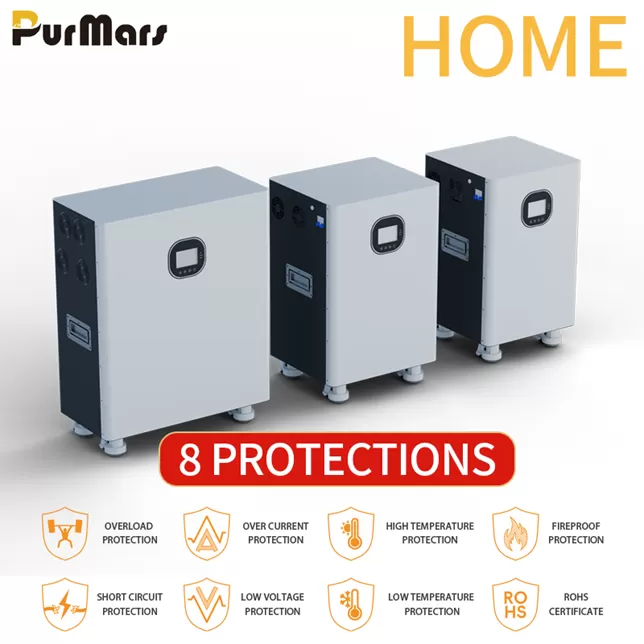

8 PROTECTIONS | Over Load / Over Current / short Circuit High Temperature RoHs Certificate / Low Voltage / Fireproof
Product model:
H5000 | Solar panel 500w, Home solar generator
1 year Free Warranty
Lifetime Customer Support
Product parameters
| Input-Inverter | AC input voltage rated | 90-280Vac |
| AC input maximum current | 22.8A/220Vac | |
| Frequency | 45-65Hz | |
| Power factor (Typ.) | 0.98 | |
| Efficiency (Typ.) | ≥95% | |
| Total harmonic distortion | <3%(@load=100%/220Vac) | |
| MPPT Operating Voltage Range | 125-430Vdc | |
| MPPT maximum input Voltage | 450Vac | |
| MPPT peak power | 5000W | |
| MPPT maximum input current | 80A | |
| Input-energy Storage | Battery type | LiFePO4 |
| Lifecycles | 3000 times+ | |
| Battery capacity | 5KWh | |
| Battery operating voltage range | 42Vdc-58Vdc | |
| Maximum charge current | 80A | |
| Maximum charge current | 125A | |
| Output-Inverter | Rated output power(Typ.)(@220V,50Hz) | 5000W |
| Voltage range | 208/220/230/240Vac | |
| Frequency range | 50/60Hz | |
| Power factor(Typ.) | 0.99/220VAC(at full load) | |
| Efficiency(Typ.) | ≥95% | |
| Total Harmonic distortion | <3%(@load=100%/220Vac) | |
| General Parameters | Overload capacity | 105-115% of rated output power |

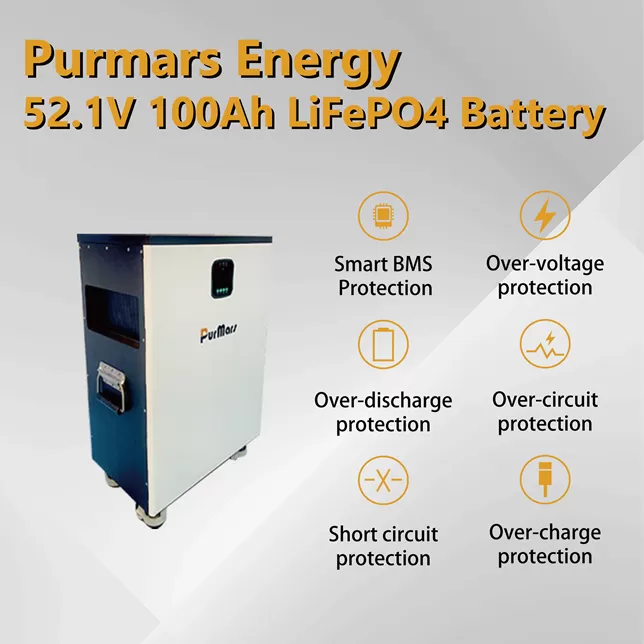

| BMS Functions | AC/DC short protection,overload protection,over temperature protection, over voltage protection, over current protection, DC undervoltage protection, Anti-island protection | |

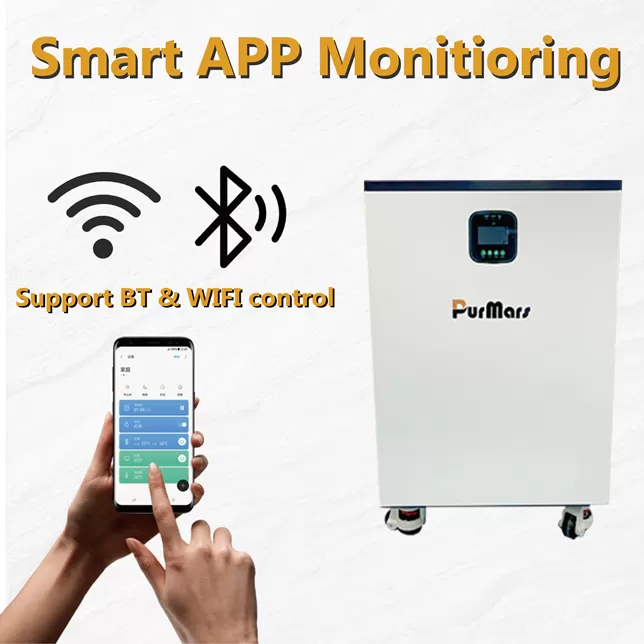

| Communication mode | CAN、RS485 | |
| Cooling mode | Active air cooling | |
| Noise emission | <60dB | |
| Operation temperature | -40~55℃ | |
| Working humidity | 20~90%RH | |
| Storage temperature and humidity | -40~85℃,10~95%℃RH | |
| Net Weight | 65Kg | |

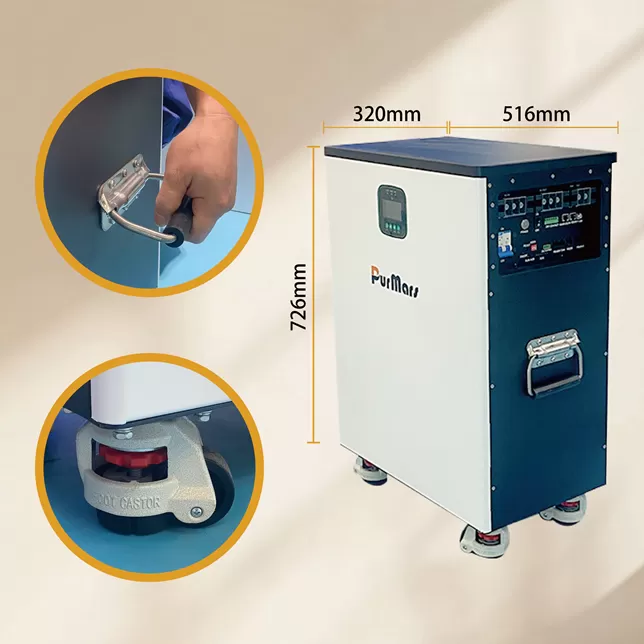

| Size | 580x480x320mm | |
| Battery Pack | Battery | LiFePO4 |
| Lifecycles | 3000 times+ | |
| Energy voltage | 5.12KWH | |
| Nominal voltage | 51.2V | |
| Operating voltage range | 42Vdc-58Vdc | |
| Standard charge | 50A | |
| Discharge current | 100A | |
| Modular design | Support stacked up to 5 layers | |
| Communication protocol | CAN\RS485 | |
| Charging operating temperature range | 0℃~45℃ | |
| Discharge working temperature range | -20℃~55℃ | |
| Net Weight | 60Kg | |
| Size | 580x480x320mm |
